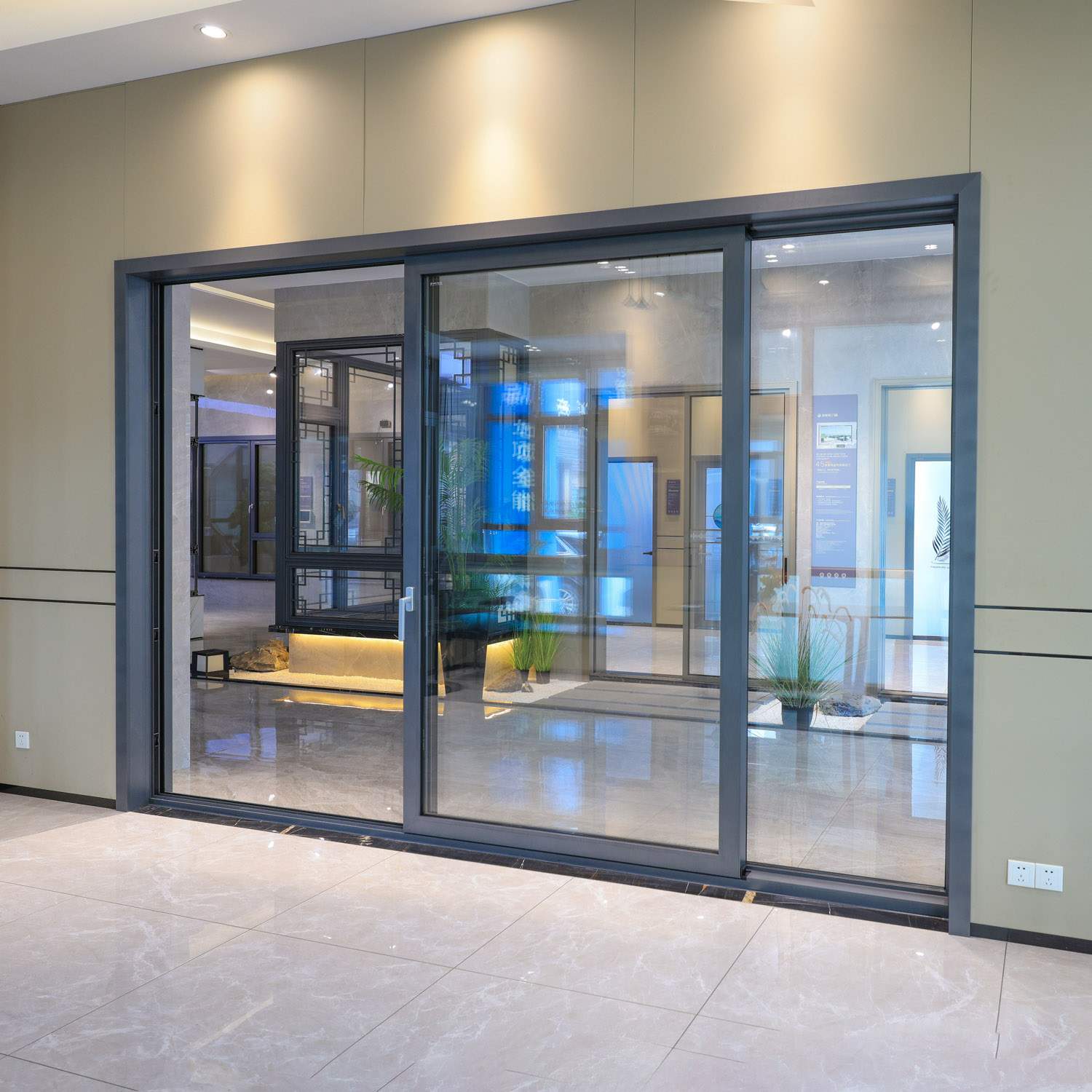

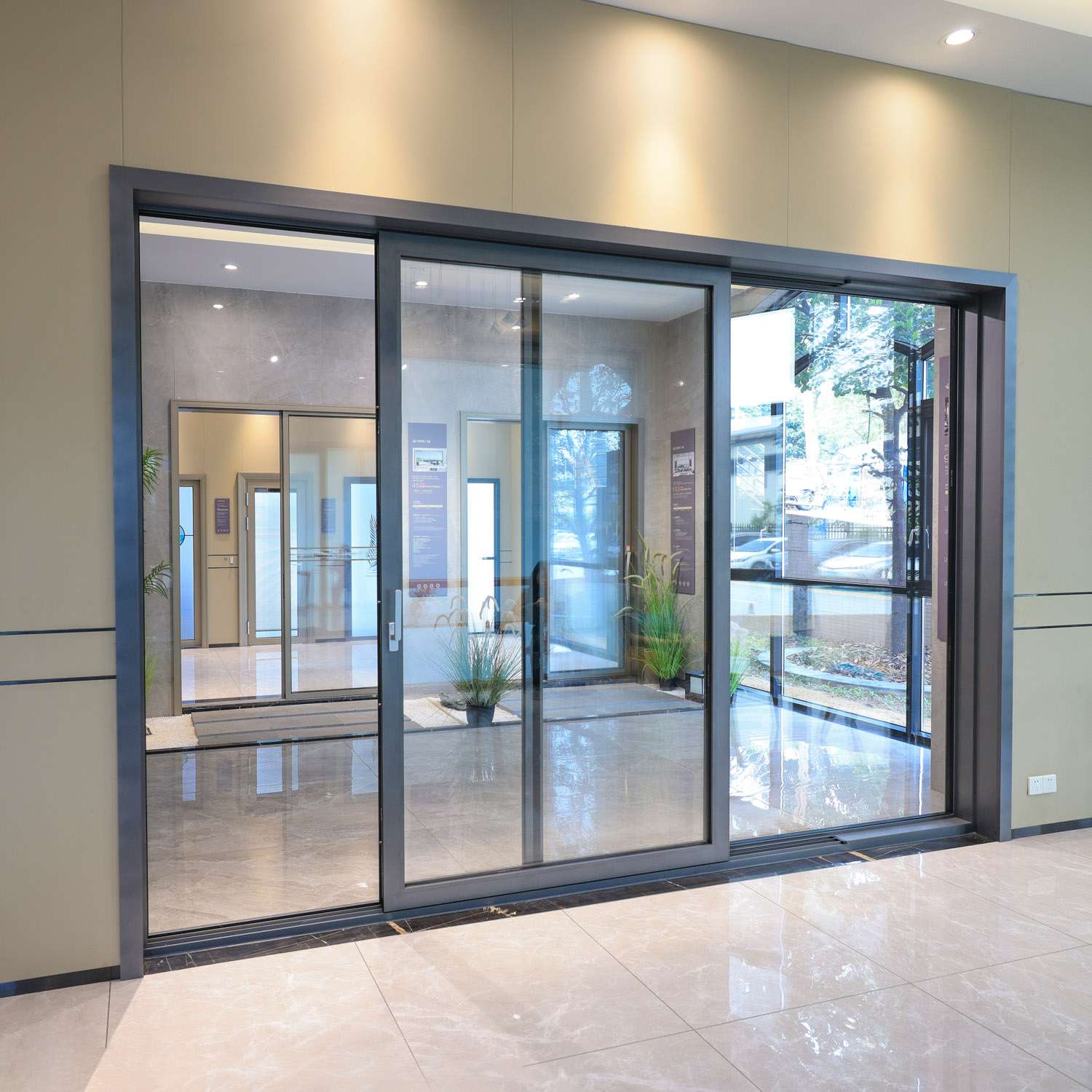

Large sliding panel, with energy efficient glass, is a hot selling from Hihaus.
Product Origin :
CHINAItem NO. :
65 M-1Color :
Customized ColorLead Time :
15-25 daysTrade terms :
EXW, FOB, CIF, CFR, DDU, DDPShipping Port :
GuangzhouHihaus Aluminium Outdoor Exterior Energy Efficient Sliding Glass Doors For Sale
Product Features
Hihaus 65 Munich-1 Villa garage front huge aluminum exterior automatic sliding glass door design Door:
1. Mid & high-end home improvement products; standard 20A hollow glass, good sound insulation effect;
2. Using SUS304 stainless steel rail, sliding smoothly.
3. European standard hardware design, the use of two-point lock equipped with a classic fashion lock, equipped with load-bearing 200KG pulley.
4. Using classic fashion lock, beautiful and generous; embedded frame package fan structure design, classic structure.
5. Comply with relevant national performance standards
Product Specifications
|
Suggested Maximum Size of Single Sash
|
1500(w)*2800(h)mm
|
|
Open Mode
|
Two tracks: 2 glass sash, 4 glass sash
Three tracks: 2 glass sash+ 1 flyscreen, 3 glass sashes, 4 glass + 2 flyscreen |
|
Frame Thickness
|
105mm (double tracks), 159mm (triple tracks)
|
|
Glass Thickness
|
5mm + 20A + 5mm, insulating and tempered glass (glass technology of your choice)
|
|
Glass Configuration
|
Magnetic Control Louvers Can Be Chosen, External Electric Door Can Be Made
|
|
Profile Wall Thickness
|
T= 1.6mm for outer frame profile, T= 3.5mm for inner frame profile, high-low bottom frame can be chosen
|
|
(A) Air Permeability (Air Tightness) m3/m.h(10 Pa) ≤
|
1.0, Class 6
|
|
Water tightness (rainwater infiltration) Pa ≥
|
350, Class 4
|
 |

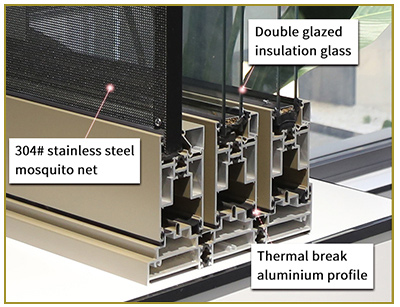

1. 45° DEGREE SPLICING Precise cutting and German craftsmanship make the connections all with excellent sealing. |
| 2. EFFECTIVE THERMAL BREAK SYSTEM Energy save ideal , strong stability, better air tightness and waterproof performance. |
 |
 |
3. LEAF ALUMINUM THICKNESS 3.5 MM High performance for wind pressure resistance |
| 4. ANTI SWING AND ANTI PRY POSITIONING WHEEL Smooth and silent sliding; Flawless anodized finish treatment. Give comfortable feeling and protection. |
 |
 |
5. GERMANY SIEGENIA CONFIGURATION German exquisite craft, durable anti-skid, long life, more safe. |
Below are for customizing doors type with opening direction, frame color, and glass color options selectable plan.
Why choose us ?
1. Proved reputation and quality from homeowners, contractors, builders and architects for more than 18 years;
2. AAMA/AS2047 standard certified manufacturer;
3. Factory of 123,000 m2 with 800 skilled technicians, strong production capability;
4. 40+ patents, strong ability of design, innovation and custom-made manufacturing;
5. On time delivery satisfying the request of projects.
Accordion bi folding door is framed with thermal break aluminium, suitable for patio giving a wide opening.
Simple and stylish design, removing complexity. A simple style more in tune with the aesthetic and experience needs of the younger generation.
Electric automatic sliding door is usually for commercial purpose, sure should be with double glazed glass , good insulation of heat and sound proof.
Large sliding panel, with energy efficient glass, is a hot selling from Hihaus.
Such a large patio is deserved a high grade screen aluminium glass sliding door.
Excellent visibility, super silent sliding,high performance , high quality roller, optional water baffle , security function with lock, fast delivery time.
Folding-style design, it makes the maximum opening for outdoor landscape, unimpeded and wide view.
Black aluminium folding door is cool at the patio, at the same time it is with insulation glass giving you a comfortable life.
