New Patio Full glass sliding door

New Patio Full glass sliding door

May 25, 2022

Let us talk about our new product full glass sliding door. Its multifunctional hook type rail sliding door system.

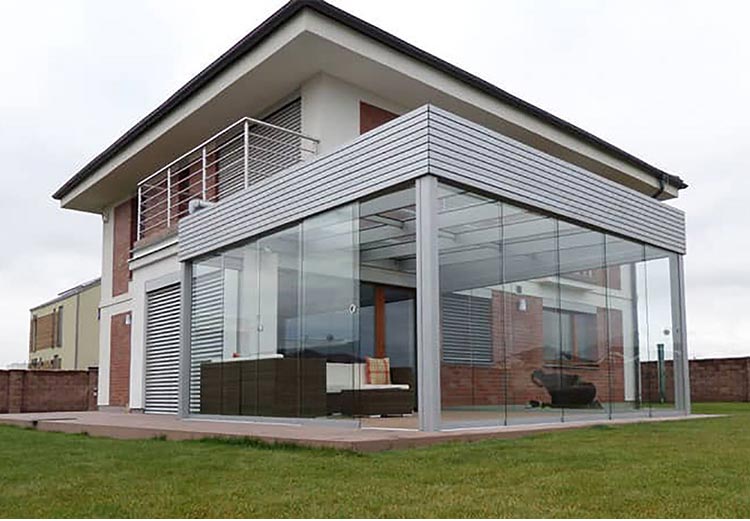

full glass sliding door



A.Profile system



Chinese national invention patent for any number of tracks to be spliced.

Full glass sliding system.

Bottom loading/running structure . Choice of flat or weathered bottom rails.

Externally sloping bottom rail particularly suitable for use in "accessible housing".

Available with or without lateral vertical frame profiles.

Optionally with or without vertical panel frame.

Can compensate for height variations of up to 20 mm.

Specially designed water barrier edge for exterior doors.



B.Accessories



Low maintenance, non-corrosive and fail-safe fittings

All fittings are concealed within the profile

Inter-lockable connection plates when sliding

Internal and/or external locking possible

Optionally with inner knob lock and outer key lock

Lock set available on the side door frame.





C.Glazing/Glass



10mm tempered safety glass panels



D.Sealing and ventilation



Gap of approximately 10 mm between glass panels (when 10 mm glazing is used)

Gap sealing via aluminium profile with brush gaskets or anti UV soft rubber

Brush gaskets are fitted horizontally at the top and at the vertical frame on the inside and outside



E.Running assembly



Stainless steel slid rail bring low-maintenance running surfaces and Low-noise when use high quality ball bearing rollers

The roller frame can be a height adjustment of up to 7 mm

The double roller capacity of the load is 80 kgs/panel (maximum panel weight)



F.Drainage



Inclined floor construction and length-optimized webs or sub sills.

End caps for lateral sealing of the bottom tracks



G.If you are interested in the new model , welcome to contact us !

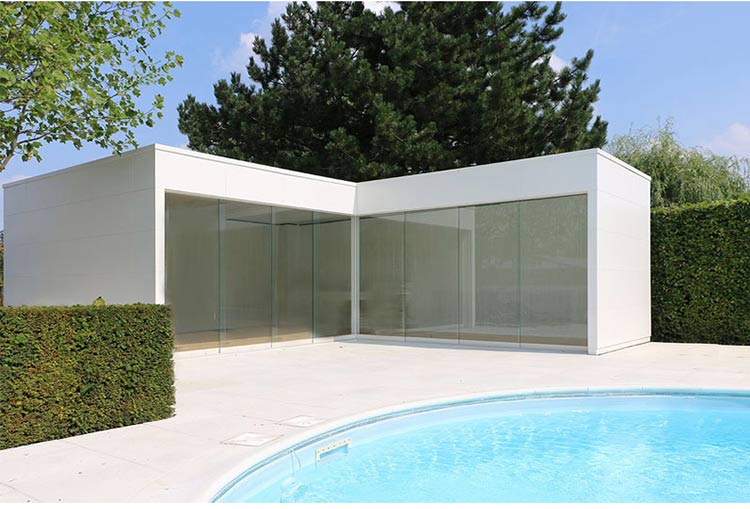

full glass sliding door
